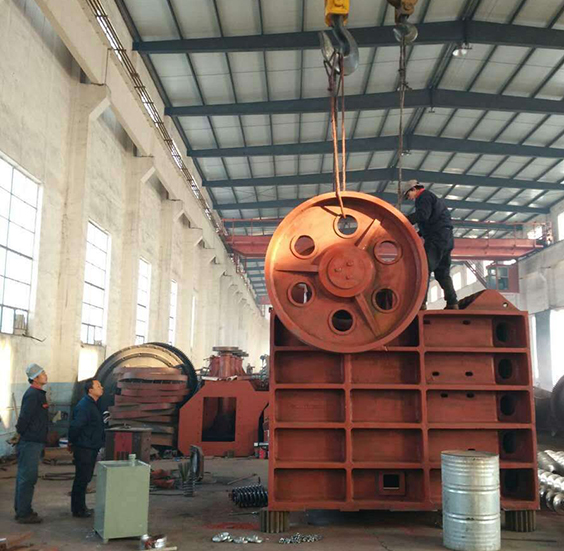

PE type compound pendulum jaw crusher
<
>
PE type compound pendulum jaw crusher
Affiliated category：
Crushing equipment
Description：
The jaw crusher has a relatively simple structure and is mainly composed of a frame, a working mechanism, a transmission mechanism, an adjusting device, a safety device and a lubrication system. It has two types: simple pendulum type and double pendulum t
Application range：
Sand and gravel, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
Applicable material：
Production capacity: 1-192t / h, the largest particle size: 80-630mm, suitable for crushing wet ore, containing more ore of clay, the crushing granularity is relatively thick.
Advantage
Advantage characteristics:
This type of crusher has a long history and belongs to the traditional crushing equipment. The electric motor drives the eccentric shaft to rotate through the V-belt wheel, and the dynamic squeezing makes the crushing force. It is divided into two types: coarse and fine. The machine has the advantages of simple structure, low price, reliable work, convenient adjustment of the discharge port, and is more suitable for crushing wet ore, ore containing more clay, and the crushing granularity is relatively coarse. Our company has optimized the design of P1400x 600, PE250x750, PE600x 900 and other types and has been approved by practical application. 1. Deep cavity design, large crushing ratio and high crushing efficiency. 2. Increased eccentric shaft speed and high production capacity.
working principle:
The material is broken by the periodic movement of the moving jaw. During the process of swinging the axially fixed sway of the suspension core, the material between the two slabs is subjected to crushing, splitting and bending. At the beginning, the pressure is small, the volume of the material is reduced, and the materials are close to each other and squeezed; when the pressure rises beyond the strength that the material can withstand, the crushing occurs. Conversely, when the moving sway moves away from the fixed yoke in the opposite direction, the material moves downward by its own weight. Each periodic movement of the moving piece causes the material to be crushed once and sent a distance downward. After several cycles, the broken material is discharged from the discharge port.
Technical Parameters:
PE type compound pendulum jaw crusher technical parameter table
|
規格型號 |
進料口尺寸 Evtrance size |
最大裝料尺寸 |
產量（t/h) |
主軸轉速（r/min) |
出料口調整范圍 |
配套電動機 Cooperate Motor |
外形尺寸（L×W×H） |
重量（不含電機）（kg） |
||
|
Standard Model |
長 Length |
寬 Width |
Max size of loading |
Output |
Speed of spin-dle |
Regulating limirs of exit |
型號 Model |
功率 power |
DImension |
Weight （excepting motor） |
|
PE150×250 |
250 |
150 |
125 |
1-3 |
285 |
10-40 |
Y132S-4 |
5.5 |
875×745×935 |
1160 |
|
PE250×400 |
400 |
250 |
200 |
5-20 |
300 |
20-80 |
Y132S-4 |
15 |
1410×1310×1386 |
2572 |
|
PE150×750 |
750 |
150 |
120 |
8-35 |
320 |
10-40 |
Y160L-4 |
15 |
1280×1610×1081 |
3350 |
|
PE400×600 |
600 |
400 |
350 |
14-36 |
250 |
40-100 |
Y250M-6 |
30 |
1700×1730×1658 |
5800 |
|
PE250×750 |
750 |
250 |
210 |
15-45 |
300 |
15-50 |
Y225M-6 |
30 |
1695×1920×1648 |
5000 |
|
PE250×1000 |
1000 |
250 |
210 |
15-50 |
330 |
20-50 |
Y280M-6 |
37 |
1550×1990×1370 |
6800 |
|
PE250×1200 |
1200 |
250 |
210 |
20-70 |
320 |
50-60 |
Y280M-6 |
45 |
1670×2190×1430 |
9000 |
|
PE500×750 |
750 |
500 |
400 |
30-80 |
250 |
50-120 |
Y280M-6 |
55 |
1900×1876×1821 |
9000 |
|
PE600×900 |
900 |
600 |
480 |
56-192 |
250 |
75-200 |
Y315S-6 |
75 |
2280×2245×2320 |
18900 |
|
PE750×1060 |
1060 |
750 |
630 |
63-210 |
250 |
80-140 |
JR126-8 |
110 |
2660×2430×2800 |
55000 |
|
PE900×1200 |
1200 |
900 |
650 |
180-350 |
180 |
100-250 |
JR126-8 |
110 |
5000×4471×3280 |
68900 |
