Tin mine re-election
<
>
Tin mine re-election
Affiliated category：
Metal Mineral
Applicable equipment：
Feeding machine, jaw crusher, cone crusher, vibrating screen, belt conveyor, ball mill, shaker, plate filter press, high efficiency thickener, dewatering screen, slurry pump, hydrocyclone, slurry pump
Application areas：
The re-election method is a traditional method for treating tungsten, tin, gold ore, especially for processing gold and sand. It is also commonly used in the treatment of sand mines containing rare metals (lanthanum, cerium, titanium, zirconium, etc.
Introduction

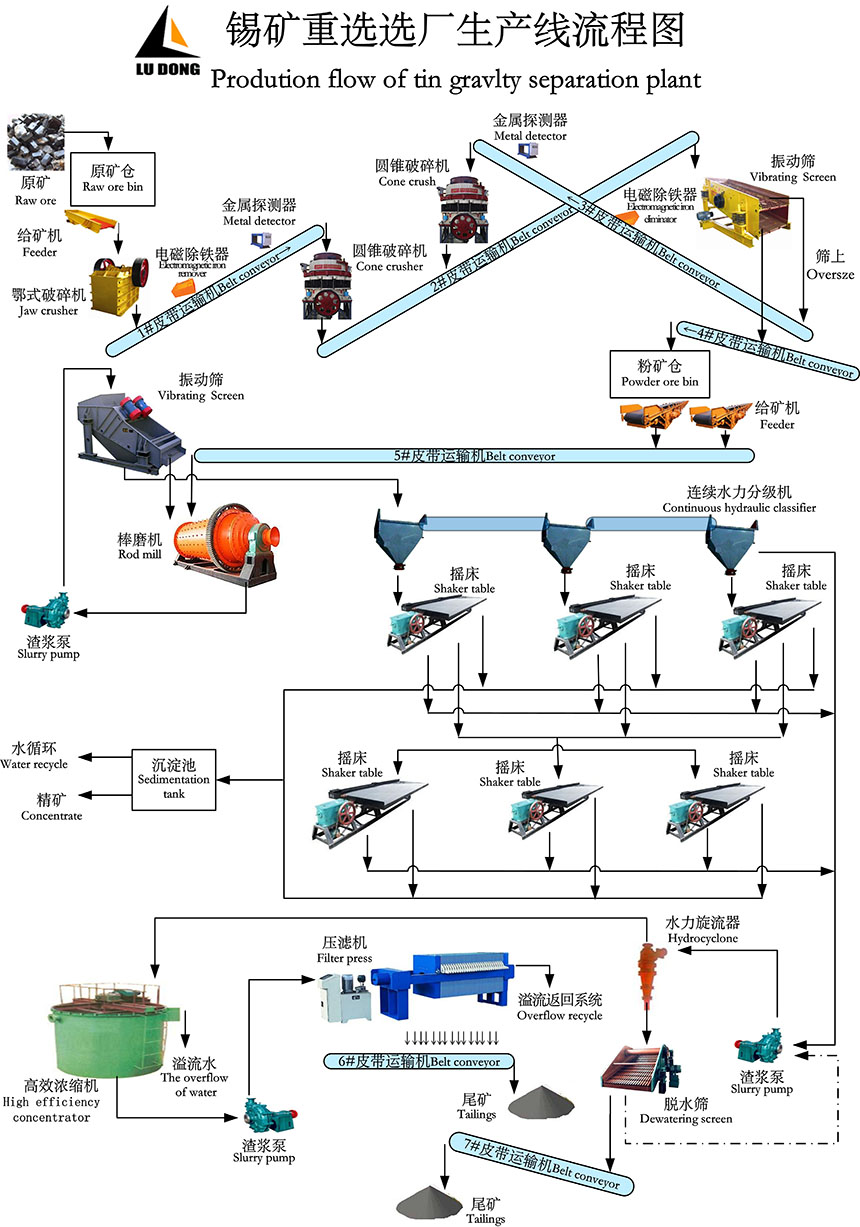

Flow chart
Tin ore is denser than symbiotic minerals. Therefore, re-election is generally used for tin ore beneficiation technology. However, due to the existence of various iron oxide minerals in minerals, such as magnetite, hematite, etc., these minerals cannot be separated from tin ore well by re-election or flotation, so they are also used. Magnetic separation or flotation operations.
Crushing and screening
The ore is crushed to 20 mm, and then sieved into two grades of 20 to 4 and 4 to 0 mm.
Pre-select
The 20~4mm ore is pre-selected into the heavy medium cyclone, and then pre-selected by a jig after a rod mill. The jigging tailings are screened with 2mm vibrating screen to remove +2mm as waste tailings, and -2mm into the shaker.
Mixed flotation
After the jigging and shaker concentrates are respectively honed, mixed flotation is carried out, and the flotation tailings are mixed to carry out a shaker to select qualified tin concentrates.
Separate flotation
The mixed flotation concentrate is subjected to fine grinding to carry out lead-zinc separation flotation, and lead bismuth concentrate and zinc concentrate are separately produced.
Reselect
The slime enters the Φ300mm cyclone, and the overflow is removed by the Φ125mm and Φ75mm hydrocyclone groups. The sedimentation is concentrated and floated for desulfurization.
Processing equipment
|
|
|
|
|
Vibration feeding machine |
Jaw Crusher |
Cone crusher |
Vibrating screen |
|
|
|
|
|
Raft conveyor |
Ball mill |
Shaker |
Plate filter press |
